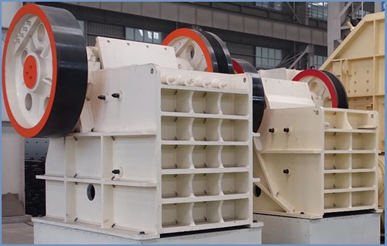

Jaw Crusher

Jaw crusher is a type of effective and energy conservation crushing machinery. Permanscess jaw crusher can meet most crushing requirements in primary and secondary crushing. Flexible discharge opening setting of jaw crusher allows perfect match with relative equipment. Permanscess jaw crusher is easy to install, operate and maintain.

Specification

Model	Opening(mm)		Max Feed Size(MM)	Close Side Setting (MM)	Capacity	Power
Model	INCH	MM	Max Feed Size(MM)	Close Side Setting (MM)	Tons/Hour	KW
PJC610	6”x10”	150×250	125	10-40	1-3	5.5
PJC630	6”x30”	150×750	125	10-40	5-16	15
PJC1015	10”x15”	250×400	210	20-60	5-20	15
PJC1524	15”x24”	400×600	350	40-100	16-65	30
PJC2030	20”x30”	500×750	425	50-100	45-100	55
PJC2436	24”x36”	600×900	500	65-140	60-160	75
PJC3042	30”x42”	750×1060	630	80-160	90-320	110
PJC3242	32”x42”	800×1060	640	80-200	110-350	110
PJC3648	36”x48”	900×1200	750	95-210	140-450	130
PJC4048	40”x48”	1000×1200	850	110-235	160-550	160
PJC4860	48”x60”	1200×1500	1020	150-300	400-800	220
PJC1048	10”x48”	250x1200	210	25-60	20-65	37
PJC1252	12”x52”	300x1300	250	25-70	25-90	55
